Affordable Cobot Palletizers: Driving Automation Forward

User-Friendly Design

High Payload Capacity

Compact Footprint

Cobot Palletizer

Code Free, Create New Recipe within 5 Minutes

1, Create A New Recipe

2, Name the New Recipe

3, Inupt the Pallet Length & Width

4, Input the Box Dimenisons

5, Create the Pallet Pattern

6, Select the Pallet Pattern for Each Layer

7,Select the Recipe for USE

Features:

Easy to Use

User-Friendly Interface

High PayLoad

Payload Up to 40KG

Fast Speed

Speed Up to 12CPM

Specifications:

Item NO	Cobot Palletizer	Cobot Palletizer	Cobot Palletizer	Cobot Palletizer	Cobot Palletizer
Model No.	WSC-RP16P	WSC-RP20P	WSC-RP25P	WSC-RP30P	WSC-RP40P
Power	3KW	3KW	3.25KW	3.5KW	4.75KW
Base Style	Lifting	Lifting	Lifting	Lifting	Lifting
Palletizing Height(Including Pallet)	2300mm	2300mm	2300mm	2300mm	2250mm
Max Load With EOAT	16KG	20KG	25KG	30KG	40KG
Pallet Size	≤ 1300×1300mm	≤ 1300×1300mm	≤ 1300×1300mm	≤ 1300×1300mm	≤ 1200×1200mm
Working Radius	1900mm	1900mm	1900mm	1900mm	1750mm
Footprint	L3590*W1735mm	L3590*W1735mm	L3590*W1735mm	L3590*W1735mm	L4190*W1735mm
Max Speed Cycles/Minute	12	11	10	10	9
IP Level	IP54	IP54	IP54	IP54	IP54
Power Supply	200-240V,50/60HZ,1Phase	200-240V,50/60HZ,1Phase	200-240V,50/60HZ,1Phase	200-240V,50/60HZ,1Phase	200-240V,50/60HZ,1Phase
Operating Temperature	0-55 ℃	0-55 ℃	0-55 ℃	0-55 ℃	0-55 ℃
Weight	500KG	500KG	500KG	500KG	600KG
Servo Motor/Drive	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Reducer	Nidec-Shimpo/LaifualDrive	Nidec-Shimpo/LaifualDrive	Nidec-Shimpo/LaifualDrive	Nidec-Shimpo/LaifualDrive	Nidec-Shimpo/LaifualDrive
PLC	KEBA	KEBA	KEBA	KEBA	KEBA
Pneumatic Components	AirTAC	AirTAC	AirTAC	AirTAC	AirTAC

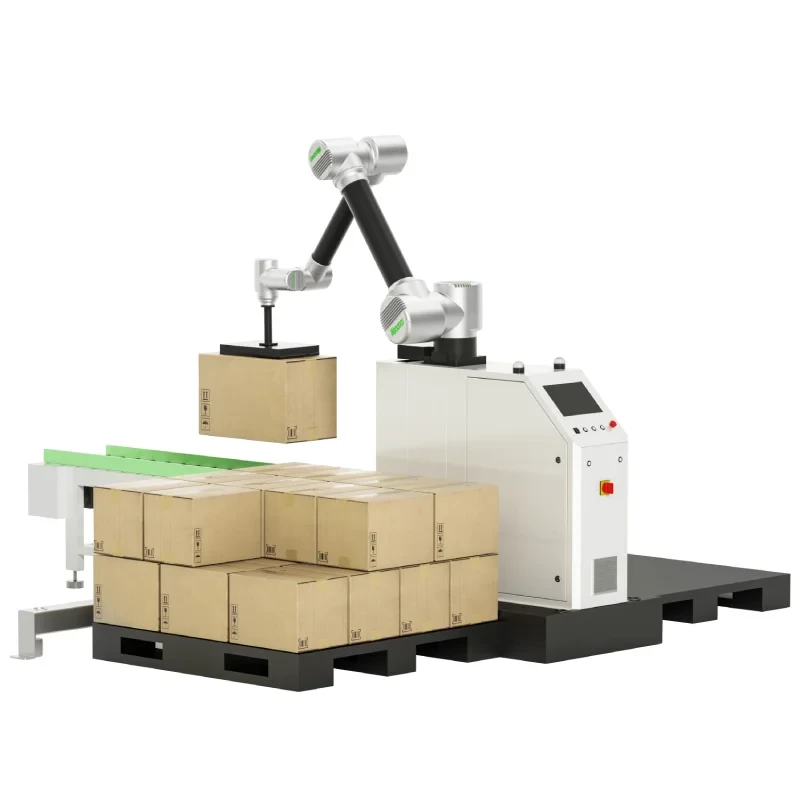

Product Photos

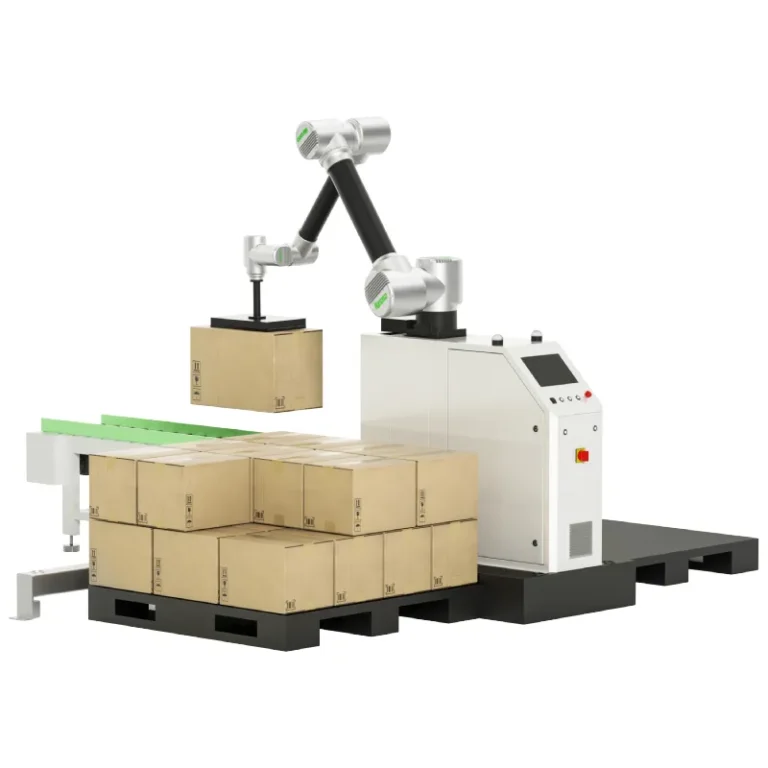

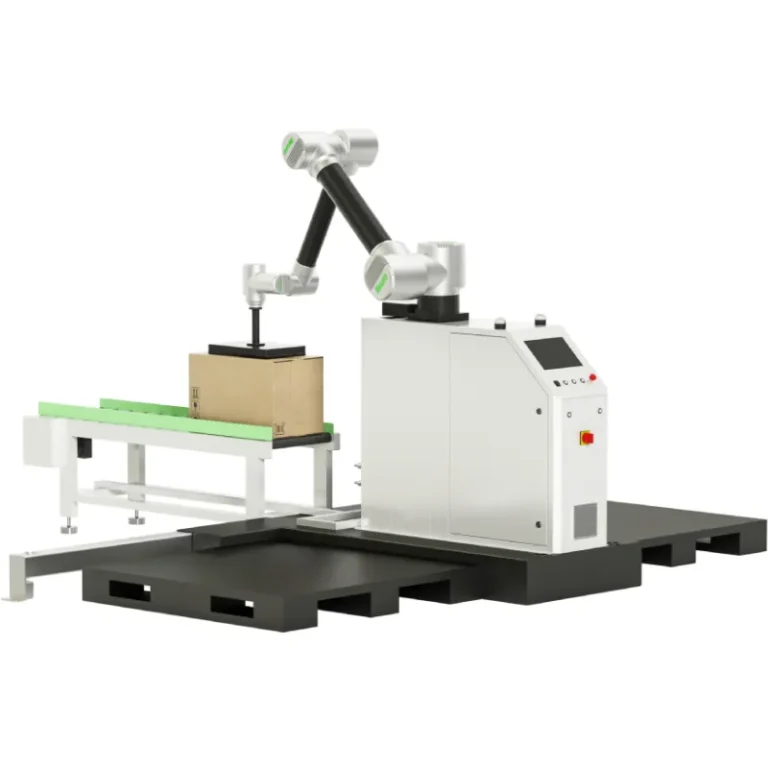

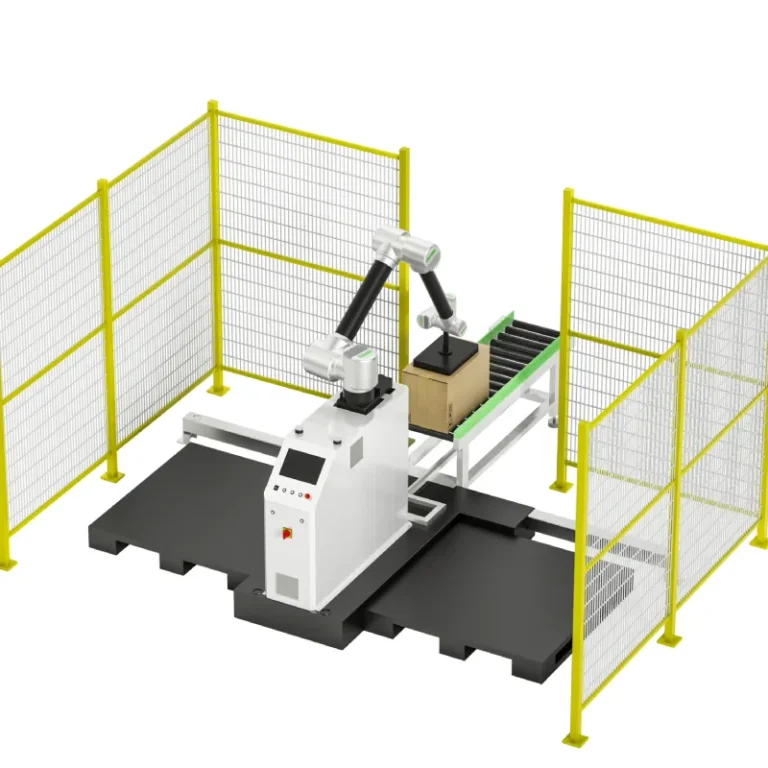

Warsonco Robotic Palletizer 3-1 — Warsonco Cobot Palletizer

Application Videos

Cobot Palletizing Robot

Cobot Palletizing System

Palletizing With Underneath Gripper

Palletizing Shrink-Wrapped Packages

Cobot Palletizing with Slip Sheet

Palletizing Multi Cases Per Cycle Time

Palletizing 2 SKUs Simultaneously

Palletizing in -18°C
